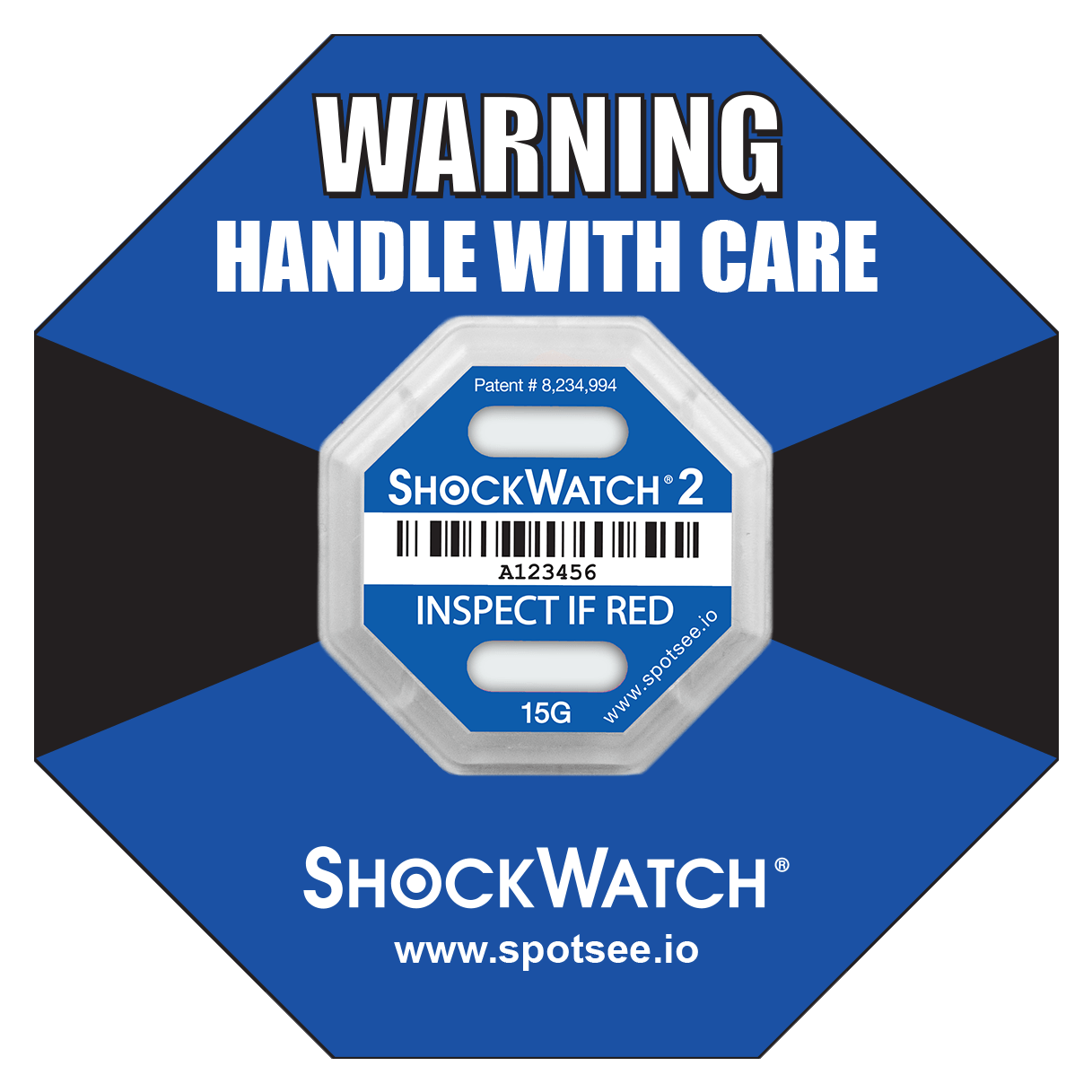

ShockWatch 2 Impact Indicators
ShockWatch® 2 impact indicators are single-use, go/no-go devices that determine if fragile products have been dropped during transit or in storage. The indicators are field-armable, tamperproof devices that turn bright red when an impact beyond a specific threshold has occurred.
Each ShockWatch® 2 has a unique identifier to support traceability.
Description
SHOCKWATCH 2 FEATURES
- Field-armable
- Tamper-proof
- Serialized
The ShockWatch 2 is offered as a stand alone or connected indicator:
ShockWatch 2
|
|
SHOCKWATCH 2 APPLICATIONS
- Energy and Utilities
- Furniture and Fixtures
- Auto and Truck Parts
- Metal Fabrication
- Consumer Electronics
- Telecommunications Equipment
- Network Equipment
- IT Hardware
- High Tech Equipment
- Instrument Panels
- Logistics & Transport
- Packaging/Crating
- Networking Hardware
- Medical Supplies
- Medical Devices
- Aerospace Components
- Defense Components
- Small Distribution Transformers
- Appliances
- HVAC
Imperial
| Sensitivity Range | 5G, 10G, 15G, 25G, 37G, 50G, 75G |
| Duration | 0.5-50 ms |
| Tolerance | ± 15% |
| Operating Temperatures | -13°F to 176°F |
| Shelf Life | 2 years when stored at standard temperature and pressure (68°F, 1 ATM) |
| Size | 1.69 in x 1.69 in x 0.25 in |
Metric
| Sensitivity Range | 5G, 10G, 15G, 25G, 37G, 50G, 75G |
| Duration | 0.5-50 ms |
| Tolerance | ± 15% |
| Operating Temperatures | -25°C to 80°C |
| Shelf Life | 2 years when stored at standard temperature and pressure (20°C, 1 ATM) |
| Size | 42.93 mm x 42.93 mm x 6.35 mm |
Part Numbers
| ShockWatch 2 – 5G | 45000K |
| ShockWatch 2 – 10G | 46000K |
| ShockWatch 2 – 15G | 47000K |
| ShockWatch 2 – 25G | 48000K |
| ShockWatch 2 – 37G | 49000K |
| ShockWatch 2 – 50G | 50000K |
| ShockWatch 2 – 75G | 51000K |
Selection Guide
Imperial
| 5 – 15 ft³ | 15 – 50 ft³ | 50 – 100 ft³ | 100 – 250 ft³ | 250 – 500 ft³ | 500 – 1,000 ft³ | 1,000+ ft³ | |
|---|---|---|---|---|---|---|---|
| 0 –10 lbs | 75G | 75G | 50G | 37G | N/A | N/A | N/A |
| 10 – 25 lbs | 75G | 50G | 50G | 37G | 25G | N/A | N/A |
| 25 – 50 lbs | 50G | 50G | 37G | 25G | 25G | 15G | N/A |
| 50 – 100 lbs | 50G | 37G | 37G | 25G | 15G | 15G | 10G |
| 100 – 250 lbs | 37G | 37G | 25G | 25G | 15G | 15G | 10G |
| 250 – 1,000 lbs | 37G | 25G | 25G | 15G | 15G | 10G | 10G |
| 1,000 – 2,000 lbs | 25G | 25G | 25G | 15G | 15G | 10G | 5G |
| 2,000 – 5,000 lbs | 25G | 25G | 15G | 15G | 10G | 10G | 5G |
| 5,000 – 10,000 lbs | 25G | 15G | 15G | 15G | 10G | 10G | 5G |
| 10,000 – 15,000 lbs | N/A | 15G | 15G | 10G | 10G | 5G | 5G |
| 15,000 – 20,000 lbs | N/A | N/A | 10G | 10G | 5G | 5G | 5G |
| 20,000 – 30,000 lbs | N/A | N/A | N/A | 5G | 5G | 5G | 5G |
| 30,000+ lbs | N/A | N/A | N/A | N/A | 5G | 5G | 5G |
Metric
| .14-.42m³ | .42-1.42m³ | 1.42-2.83m³ | 2.83-7.08m³ | 7.08-14.16m³ | 14.16-304.8m³ | 304.8+m³ | |
|---|---|---|---|---|---|---|---|
| 0-5 kg | 75G | 75G | 50G | 37G | N/A | N/A | N/A |
| 5-11 kg | 75G | 50G | 50G | 37G | 25G | N/A | N/A |
| 11-23 kg | 50G | 50G | 37G | 25G | 25G | 15G | N/A |
| 23-45 kg | 50G | 37G | 37G | 25G | 15G | 15G | 10G |
| 45-113 kg | 37G | 37G | 25G | 25G | 15G | 15G | 10G |
| 113-454 kg | 37G | 25G | 25G | 15G | 15G | 10G | 10G |
| 454-907 kg | 25G | 25G | 25G | 15G | 15G | 10G | 5G |
| 907-2,268 kg | 25G | 25G | 15G | 15G | 10G | 10G | 5G |
| 2,268-4,536 kg | 25G | 15G | 15G | 15G | 10G | 10G | 5G |
| 4,536-6,804 kg | N/A | 15G | 15G | 10G | 10G | 5G | 5G |
| 6,804-9,072 kg | N/A | N/A | 10G | 10G | 5G | 5G | 5G |
| 9,702-13,608 kg | N/A | N/A | N/A | 5G | 5G | 5G | 5G |
| 13,608+ kg | N/A | N/A | N/A | N/A | 5G | 5G | 5G |
Accessories
Alert StickerThis unmistakable alert affixes directly to the bill of lading to caution the carrier and consignee that the shipment is being monitored for mishandling. |
Alert TapeShockWatch packing tape provides an unmistakable visual alert that impact indicators are in use and reinforcement that proper handling procedures are required. |
Companion LabelA companion label provides a visual warning that the package is being monitored and has instructions on what to do should mishandling occur. |
